The centrifugal rainwater fine filter is installed inline with the rainwater conveyance system to remove debris prior to the storage tank. Depending on the volume of incoming water, over 90% of the incoming water is diverted to the storage tank while the excess water and debris exits through the drain connection at the bottom. The filter operates as a first flush device by diverting a portion of the water at the beginning of a rain event as the process of surface tension becomes fully active.
The inlet section of the filter can be rotated separately from the lower (tank outlet and drain) section for the ideal installation orientation.

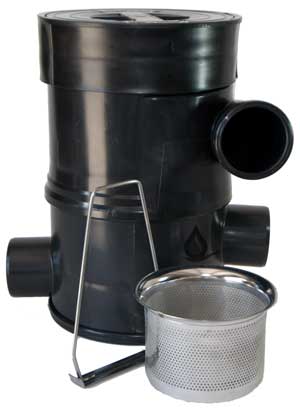

The filter assembly consists of a polypropylene filter housing, removable stainless steel .011” fine mesh filter insert, 12 inch stainless steel lift handle, upper ring, and housing lid. The filter should be cleaned at least once a year.
Features all 4 inch connections; a 4" inlet, 4" outlet (clean water) and 4" overflow (dirty water).

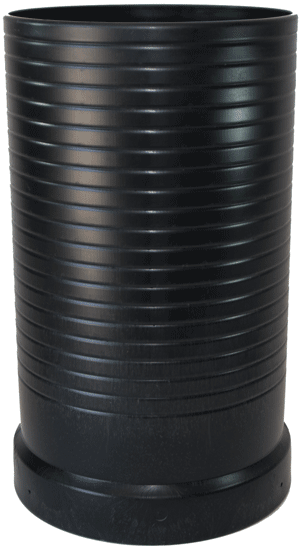

The 20" PE extension tube (shown below) can be included, free of charge. Simply check the box above, stating you would like the extension tube included with your centrifugal filter.
